Description

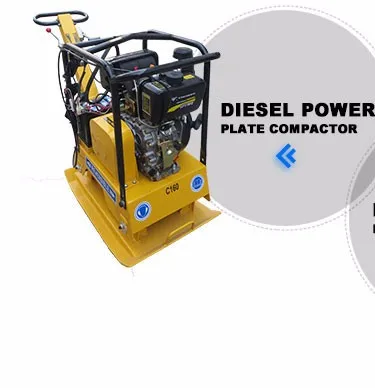

HAOHONG HHPB-30 vibratory plate compactor concrete vibration machine



Shock absorber made of nature rubber ,has better absorption, which protects the engine and user friendly.



Can modify machine for different purpose upon client’s request

   a. Add PU plate for use on fragile surface, it’s absorb impact to the surface.

   b. Add water tank for use on asphalt surface, anti-stick.

   c. Add wheels for easier transportation

Many power source options to choose from, such as Honda, Robin and Loncin.

Electric power source also available.







Model	HHPB-20	HHPB-S30	HHPB-S30G	HHPB-S30C
Engine	GX160	GX160	GX160/GX270	CF170/ CF178
Power	5.5HP	5.5HP	5.5HP/9.0HP	5.0HP/6.0HP
Working area	430*550mm	420*690mm	500*690mm	500*690mm
Walking mode	One-way	Hydraulic double-way	Machinery double-way	Machinery double-way
Vibrating force	20KN	30KN	30KN	30KN
Frequency	70HZ	70HZ	70HZ	70HZ
Grade ability	25%	25%	25%	25%
Starting mode	Hand	Hand	Hand	Hand/electric
Packing size	760*520*700mm	780*560*1060mm	780*560*1060mm	780*560*1060mm
weight	85kg	140kg	160kg/175kg	160kg/175kg





Engine	GX160	GX160	GX160/GX270	CF170/ CF178
Power	5.5HP	5.5HP	5.5HP/9.0HP	5.0HP/6.0HP
Working area	430*550mm	420*690mm	500*690mm	500*690mm
Walking mode	One-way	Hydraulic double-way	Machinery double-way	Machinery double-way
Vibrating force	20KN	30KN	30KN	30KN
Frequency	70HZ	70HZ	70HZ	70HZ
Grade ability	25%	25%	25%	25%
Starting mode	Hand	Hand	Hand	Hand/electric
Packing size	760*520*700mm	780*560*1060mm	780*560*1060mm	780*560*1060mm
weight	85kg	140kg	160kg/175kg	160kg/175kg

double way vibrating plate compactor are designed for use on granular soils, hot or cold asphalt, and paving blocks. These units are ideal for trenches, road construction, backfill, and foundation work. It is suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.
