Road Construction Machinery 2Ton Vibration Road Roller AW20
Our factory is integrated with production and sales road roller. We can customize the road roller according to customers’ requirements (for example, changing the engine or customizing it to other requirements).

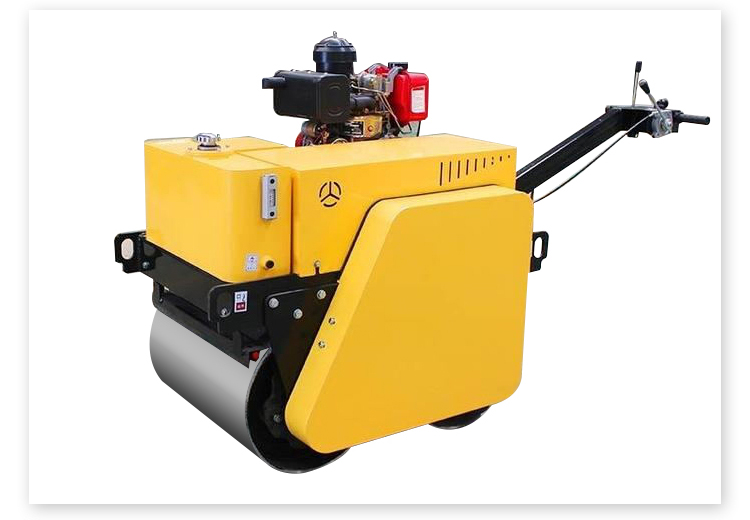

Walk Behind Road Roller Technical Parameters:
|
Model |
AWR-0.5 |
|
Walk speed |
0-4km/h |
|
Gradability |
30% |
|
Drive Type |
Hydraulic drive |
|
Vibration control |
Automatic clutch |
|
Nominal amplitude |
0.5mm |
|
Vibration frequency |
70Hz |
|
Exciting force |
20KN |
|
Water tank |
20L |
|
Oil tank |
6L |
|
Engine model |
GX270/CF178F/CD180 |
|
Power |
9HP/6HP/7HP |
|
Steel wheel size |
φ450mm*600mm*2 |
|
Net weight |
560kg |
|
Starting mode |
Hand and electric |

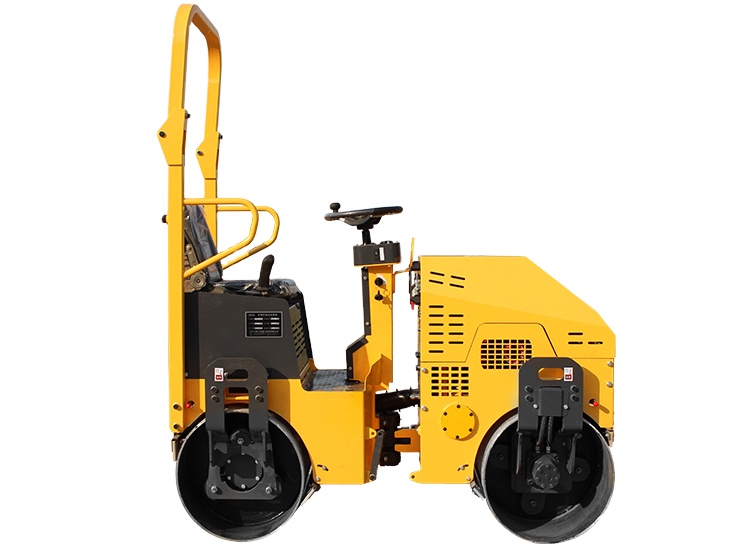

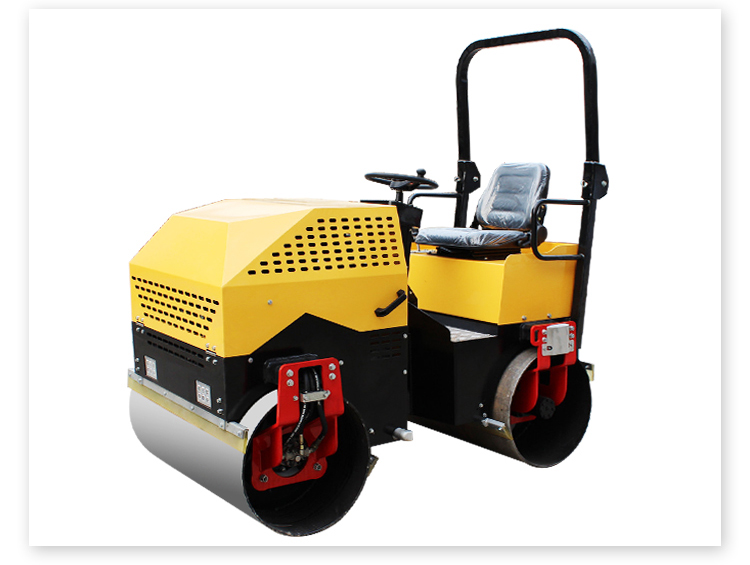

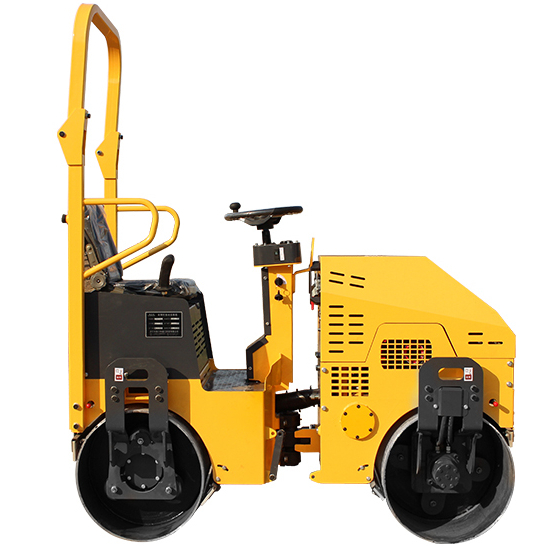

Ride On Mini Road Roller Technical Parameters:
|
Model |
AWR-0.8 |
AWR-1.0 |
|
Walk speed |
0-5km/h |
0-6.5km/h |
|
Gradability |
30% |
35% |
|
Drive Type |
Hydraulic double drive |
Hydraulic double drive |
|
Vibration control |
Electromagnetic control |
Electromagnetic control |
|
Static linear control |
50N/cm |
56N/cm |
|
Nominal amplitude |
0.5mm |
0.5mm |
|
Vibration frequency |
70Hz |
70Hz |
|
Exciting force |
25KN |
28KN |
|
Water tank |
25L |
60L |
|
Hydraulic oil tank |
6.5L |
35L |
|
Engine model |
CF178F/CD180 |
Gasoline GX390/diesel engine |
|
Power |
6HP/7HP |
11HP/13HP |
|
Steel wheel size |
Before:φ580mm*700mm Rear:φ425mm*500mm |
φ540mm*800mm*2 |
|
Net weight |
780kg |
1000kg |
|
Starting mode |
Hand and electric |
Hand and electric |
|
|
||
|
Model |
AWR-1.2 |
AWR-2.0 |
|
Walk speed |
0-6km/h |
0-8km/h |
|
Gradability |
30% |
30% |
|
Drive Type |
Hydraulic double drive |
Hydraulic transmission |
|
Vibration control |
Electromagnetic control |
Hydraulic vibration |
|
Static linear control |
56N/cm |
55N/cm |
|
Nominal amplitude |
0.5mm |
0.6mm |
|
Vibration frequency |
70Hz |
65Hz |
|
Exciting force |
30KN |
30KN |
|
Water tank |
55L |
100L |
|
Hydraulic oil tank |
6.5L |
60L |
|
Engine model |
CF186F |
403D/GX630/CF13/diesel engine |
|
Power |
8.5hp |
25HP/20HP/13HP |
|
Steel wheel size |
Before:φ530mm*740mm Rear:φ530mm*800mm |
φ560mm*900mm*2 |
|
Net weight |
1200kg |
2000kg |
|
Starting mode |
Hand and electric |
Hand and electric |
Rubber Wheel Hydraulic Road Roller Technical Parameters:
|
Model |
AWR-6.0 |
AWR-7.0 |
AWR-8.0 |
|
Gradability |
30% |
||
|
Walk speed |
0-12km/h |
0-14km/h |
|
|
Vibration frequency |
46hz |
||
|
Engine model |
CF490B |
YN4102Z |
|
|
Engine power |
40kw |
76kw |
|
|
Vibration wheel width |
1450mm |
1650mm |
1850mm |
|
Vibration wheel diameter |
1000mm |
1100mm |
1200mm |
|
Quality of work |
6000kg |
7000kg |
8000kg |
|
Size |
4450*1650*2650mm |
4550*1850*2650mm |
4850*2000*2750mm |
1. With internationally famous bearings.
2. High-grade ability, more flexible.
3. Plastic treated, anti-rust, anti-corrosion, and beautiful.
4. Adopts Import engine, excellent performance, easy to start-up.
5. Equipped with a large capacity water tank, reduce the return water trouble.
6. Water-cooled radiator.
7. The imported hydraulic system.
8. Infinitely variable speeds, hydraulic steering, walking forward and backward.
9. Electric startup, hydraulic vibration.
A road roller is mainly used for the compaction of asphalt surfaces, the compaction of gravel, sand, and other projects. Due to the excellent welt, particularly suitable for foundation ditch, walkways and cycle paths, parking lots, and all types of repair works.
